The Complete P3 Production Setup

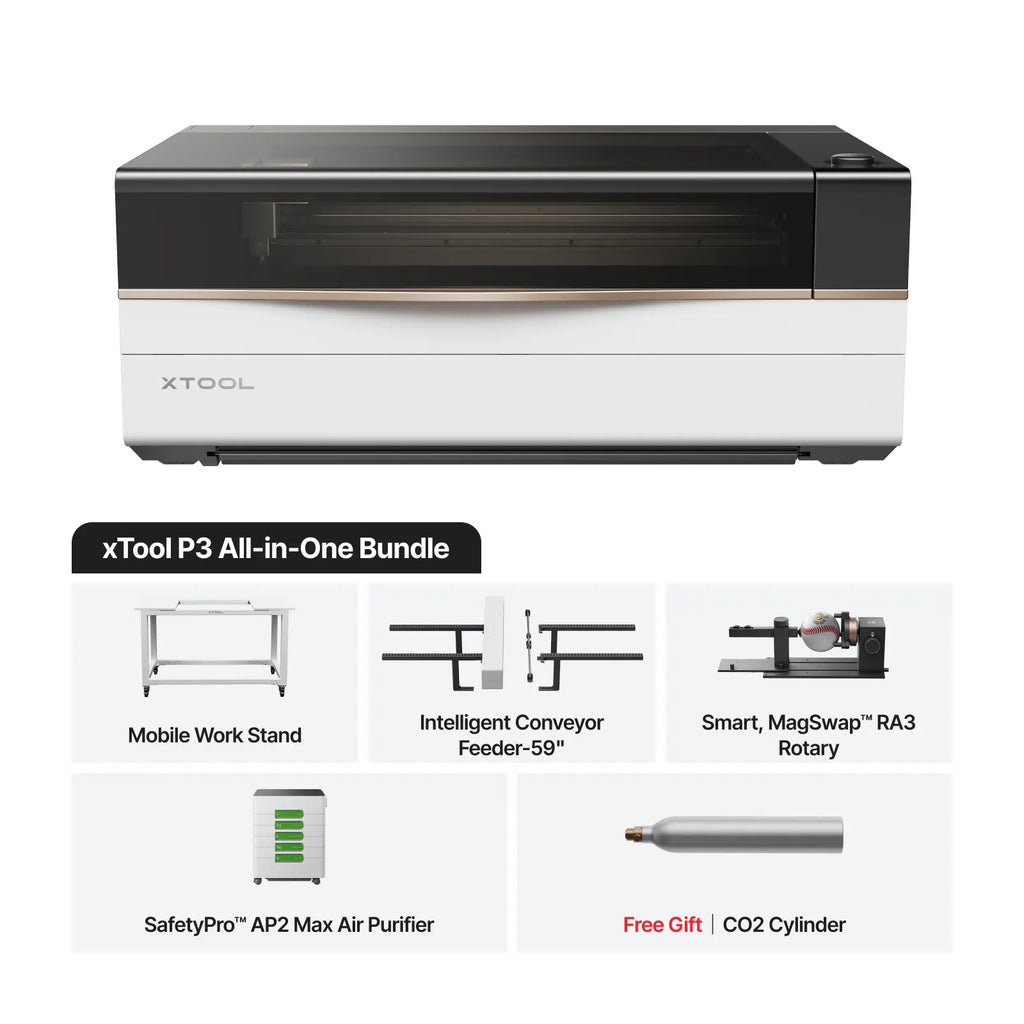

The xTool P3 All-in-One Bundle builds the flagship 80W CO₂ xTool P3 into a production-ready system: automated material feeding, rotary engraving, a mobile stand and industrial air purification, all in one purchase. Start producing from day one.
What Is Included
- xTool P3 80W CO₂ Laser Cutter (x1): the flagship laser with ACS™ intelligent automation.
- xTool Mobile Work Stand (x1): lets one person move the 231 lb P3 and adapt the machine to different workflows.
- xTool P3 Intelligent Conveyor Feeder (x1): automated processing for signage, furniture and other long-format materials.
- xTool RA3 Rotary (x1): automated engraving on cylinders, spheres, rings, vases and irregular objects.
- xTool SafetyPro™ AP2 Max Air Purifier (x1): industrial-grade air purification to reduce fumes, odors and formaldehyde.
- CO₂ Cylinder (x1), free gift: an extra safety measure that helps suppress a rare flame event inside the machine.
Key Features of the P3
80W CO₂ Power
Cut up to 20 mm basswood and 25 mm black acrylic in a single pass, and engrave wood, acrylic, glass, bamboo and more at up to 1,200 mm/s.
36" x 18" Work Area
915 x 458 mm, 2.3x larger than the P2S, for large-format projects and batch production.
ACS™ Smart Workflow

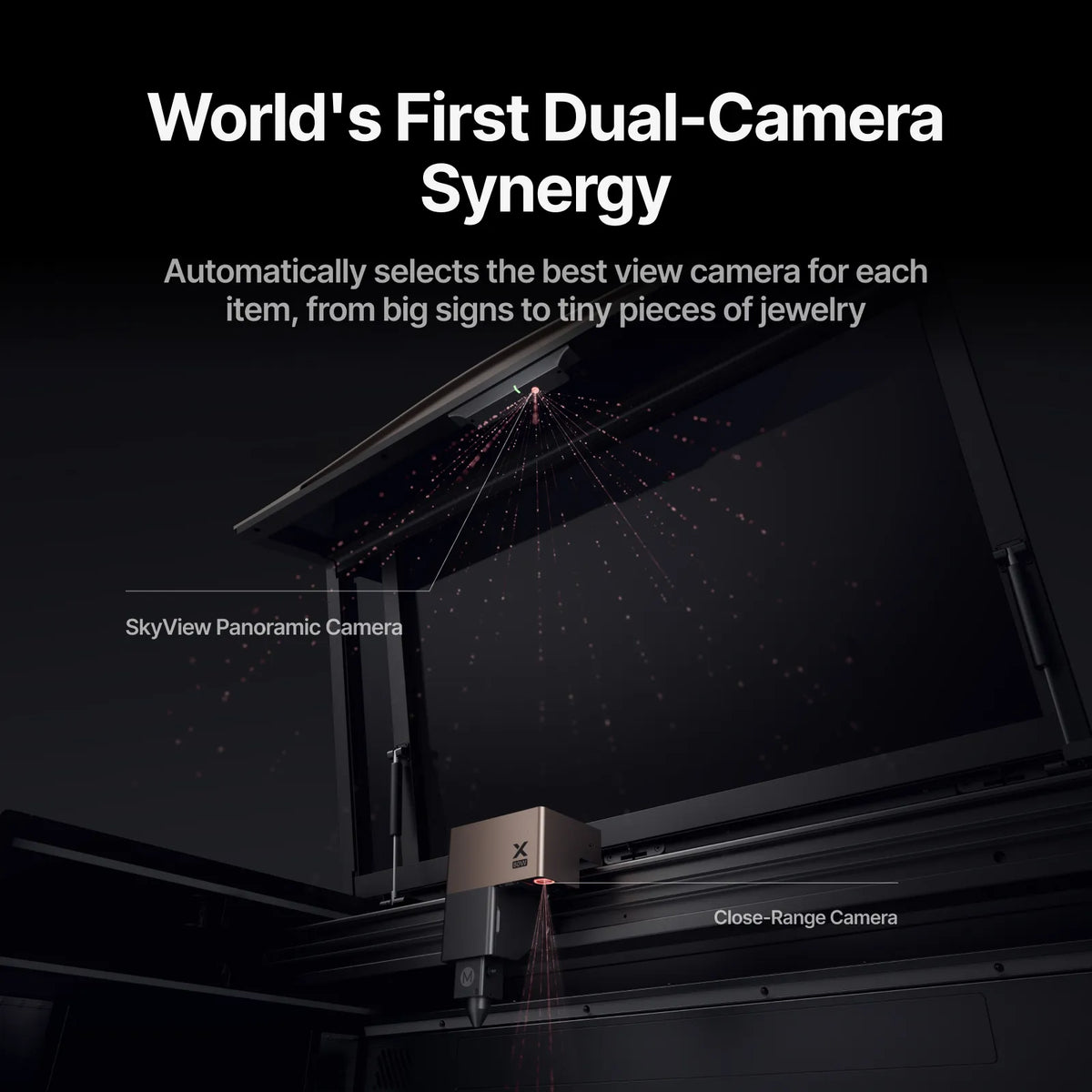

A 16MP SkyView panoramic camera, a close-range camera and two side cameras, plus LiDAR ranging and an AutoLift base with up to 220 mm of processing height.
Class 1 Laser Safety
Flame and temperature sensing, side cameras and built-in CO₂ active fire suppression.
xTool Studio
Design, nesting and machine control on Windows and macOS, over USB or Wi-Fi.
Why This Bundle?
Everything you need for large-format, continuous and rotary production arrives together: automated feeding for long materials, precise rotary engraving with 3D preview, a mobile stand and heavy-duty filtration. A strong fit for sign shops, production shops and growing small businesses.
Specifications
| Specification | Details |
|---|---|
| Laser Source | 80W CO₂ |
| Working Area | 36" x 18" (915 x 458 mm) |
| Max Speed | 1,200 mm/s |
| Max Processing Height | 220 mm with AutoLift base |
| Cameras | 16MP SkyView + close-range + 2 side cameras, LiDAR ranging |
| Connection | USB / Wi-Fi |
| Software | xTool Studio (Windows & macOS) |
| Laser Safety | Class 1 |
Good to Know
The 5W IR module for metal engraving is not part of this bundle and is sold separately. Actual cutting performance depends on material, density, settings and environment. Specifications come from xTool and may vary by setup and material. Questions? Call us at (305) 721-0459.
Features
Built for Production
Automation, power and safety designed to keep your shop running.
Place, Preview, Go with ACS™
Dual cameras capture the bed, LiDAR measures the surface and the AutoLift base sets focus for you, so you place the material and start.
The Largest Desktop Working Area
A 36" x 18" (915 x 458 mm) workspace, 2.3x larger than the P2S, cutting up to 20 mm basswood and 25 mm black acrylic in a single pass.
Automate Your Production Line
Add the Intelligent Conveyor Feeder for materials of virtually any length and the MagSwap™ RA3 rotary with 360° LiDAR mapping for batch engraving.
Place It. Position It. Start.
The ACS™ smart workflow takes the guesswork out of every job.
Why Shops Choose the P3
Power, safety and automation in one machine.
Flexible Ways to Invest in Your Growth
xTool P3 vs. P2S vs. F2 Ultra
xTool P2S
xTool P3
xTool F2 Ultra
Specifications
Laser & Performance
- Laser Source
- 80W CO₂ (5W IR module optional)
- Working Area
- 36" x 18" (915 x 458 mm)
- Max Speed
- 1,200 mm/s (47.2 ips)
- X-Axis Acceleration
- 19,600 mm/s²
- Max Cutting, Basswood
- 20 mm, one pass
- Max Cutting, Black Acrylic
- 25 mm, one pass
- Laser Tube Life
- 10,000 hours
- Laser Spot Size
- 0.15 x 0.18 mm (standard lens)
Vision & Software
- Cameras
- 16MP SkyView panoramic + close-range + 2 side cameras
- Positioning Precision
- 0.2 mm (camera)
- Software
- xTool Studio (Windows & macOS)
- Connection
- USB / Wi-Fi
- Supported Files
- SVG, DXF, JPG, JPEG, PNG, BMP, TIF

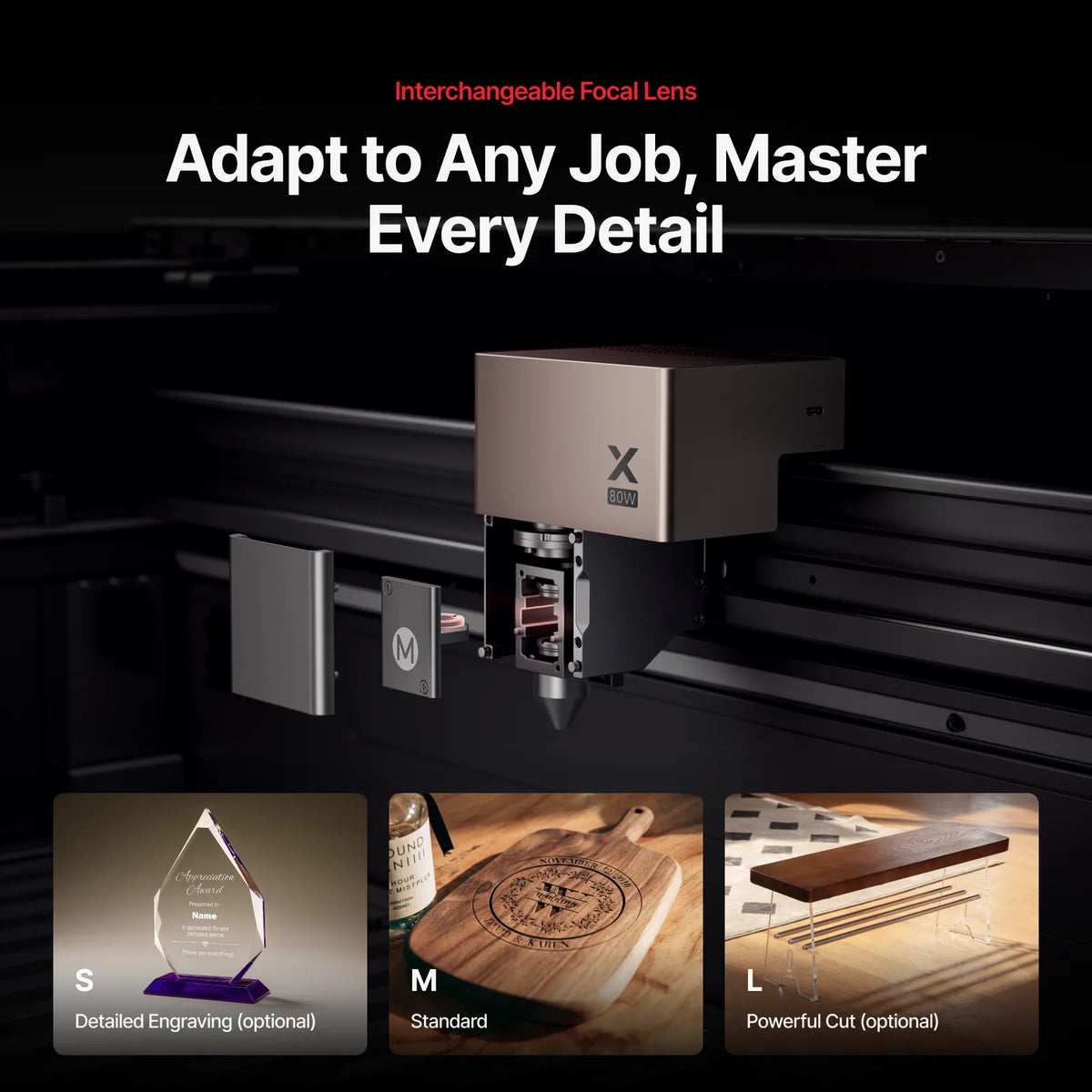

- Focal Lens
- M (2.0") included; S and L sold separately
Physical
- Dimensions
- 49.2" x 30.7" x 19.5" (1250 x 780 x 496 mm)
- Weight
- 231.5 lb (105 kg)
- Max Processing Height
- 220 mm with riser base
- Rotary Diameter
- 0-200 mm
- Max Input Power
- 1400 W
- Power Input
- 100-240 V AC, 50 Hz
Safety & Cooling
- Laser Safety Class
- Class 1
- Cooling
- Built-in inverter water chiller
- Fire Suppression
- Built-in CO₂ active suppression
- Pre-assembled
- Yes
Frequently Asked Questions
The P3 steps up to 80W of CO₂ power (vs. 55W), a 36" x 18" working area (vs. 23.6" x 12"), 1,200 mm/s speed (vs. 600 mm/s), Class 1 laser safety and a built-in water chiller.
CO₂ delivers clean cuts in wood and acrylic, can engrave clear acrylic and glass, and handles thick materials like 20 mm basswood and 25 mm black acrylic. Adding the 5W IR module expands compatibility to 300+ materials.
Dual cameras capture a live image of the bed, LiDAR measures the surface distance and the AutoLift base raises or lowers the material to the right focal point, so you place, position and start.
The M focal lens ships with the P3. The conveyor feeder, MagSwap™ RA3 rotary, 5W IR module and the S and L lenses are sold separately unless they come in a bundle. The AP2 Max air purifier is recommended for fumes and odors.
The P3 is a Class 1 laser system with flame and temperature sensing, side cameras and built-in CO₂ active fire suppression. Always ventilate or use an air purifier, and never leave a running job unattended.
xTool Studio for Windows and macOS, including Smart Nesting, Variable Batch Fill and EasySet™ 2.0 material presets.
Choose Standalone to start, the Versatile Bundle for more accessories, or the All-in-one Bundle for a full production setup. Contact us and we will help you pick the right one.
