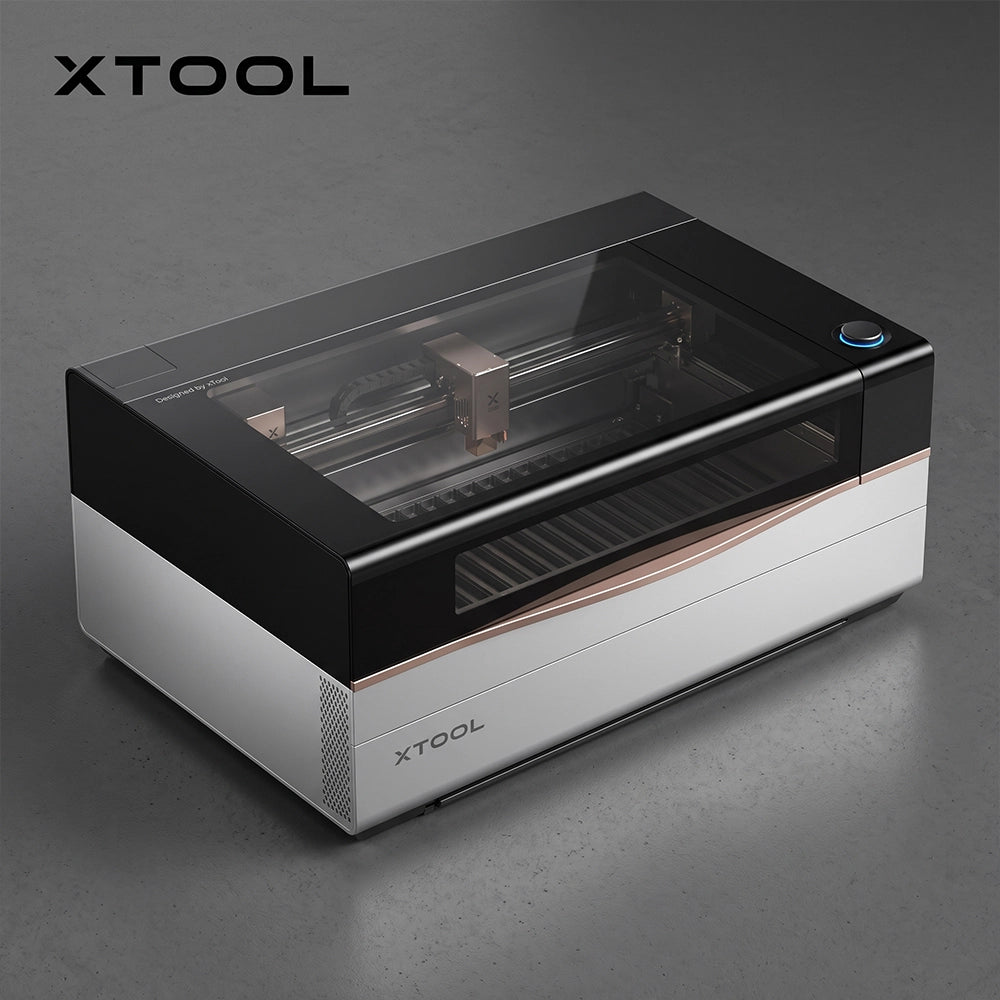

The Flagship 80W CO₂ Laser for Production
The xTool P3 is an 80W CO₂ laser cutter and engraver built for shops that need more power, more workspace and more automation. A 36" x 18" work area, speeds up to 1,200 mm/s and an ACS™ smart workflow take you from design to finished piece with less manual setup.
Key Features
Place, Preview, Go with ACS™
Cameras capture the bed, LiDAR measures the surface and the motorized AutoLift base sets the focus. You place the material and start.
80W CO₂ Power
Cut up to 20 mm basswood and 25 mm black acrylic in a single pass, with fast, clean engraving on wood, acrylic, glass, bamboo and more. The laser tube is rated for 10,000 hours.
Largest Desktop Work Area
36" x 18" (915 x 458 mm), 2.3x larger than the P2S, at up to 1,200 mm/s with 19,600 mm/s² X-axis acceleration.
4-Camera Vision
A 16MP SkyView panoramic camera, a close-range camera and two side cameras deliver live previews and 0.2 mm positioning precision.
Optional 5W IR Module
Add the 5W infrared module to engrave metals and plastics and expand compatibility to 300+ materials.
Automate Your Line
The Intelligent Conveyor Feeder handles materials of virtually any length, and the MagSwap™ RA3 rotary adds 360° LiDAR-mapped engraving for batches. The conveyor, rotary and IR module are sold separately unless they come in a bundle.
Class 1 Laser Safety
Flame and temperature sensing, side cameras and built-in CO₂ active fire suppression, with a certified Class 1 rating.
xTool Studio
Smart Nesting reaches up to 98.7% material utilization, with Variable Batch Fill and EasySet™ 2.0 material presets on Windows and macOS.
What You Can Make
Signage, wood products, acrylic displays, personalized gifts, awards and plaques, promotional products, home and wedding décor, retail displays, custom packaging and batch-produced items.
Choose Your Package
Select Standalone, Versatile Bundle or All-in-one Bundle above. The standalone P3 includes the M focal lens; the S and L lenses are sold separately. Not sure which one fits? Call us at (305) 721-0459.
Specifications
| Specification | Details |
|---|---|
| Laser Source | 80W CO₂ (5W IR module optional) |
| Working Area | 36" x 18" (915 x 458 mm) |
| Max Speed | 1,200 mm/s (47.2 ips) |
| X-Axis Acceleration | 19,600 mm/s² |
| Max Cutting, Basswood | 20 mm, one pass |
| Max Cutting, Black Acrylic | 25 mm, one pass |
| Laser Tube Life | 10,000 hours |
| Cameras | 16MP SkyView + close-range + 2 side cameras |
| Positioning Precision | 0.2 mm |
| Max Processing Height | 8.66" (220 mm) with AutoLift base |
| Rotary Diameter | 0-200 mm |
| Dimensions | 49.2" x 30.7" x 19.5" (1250 x 780 x 496 mm) |
| Weight | 231.5 lb (105 kg) |
| Power | 1400 W max, 100-240 V AC, 50 Hz |
| Cooling | Built-in inverter water chiller |
| Connection | USB / Wi-Fi |
| Supported Files | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| Laser Safety | Class 1 |
Good to Know
Actual cutting performance depends on material, density, settings and environment. Always ventilate or use an air purifier, and never leave a running job unattended. Specifications come from xTool and may vary by setup and material.
Features
Built for Production
Automation, power and safety designed to keep your shop running.
Place, Preview, Go with ACS™
Dual cameras capture the bed, LiDAR measures the surface and the AutoLift base sets focus for you, so you place the material and start.
The Largest Desktop Working Area
A 36" x 18" (915 x 458 mm) workspace, 2.3x larger than the P2S, cutting up to 20 mm basswood and 25 mm black acrylic in a single pass.
Automate Your Production Line
Add the Intelligent Conveyor Feeder for materials of virtually any length and the MagSwap™ RA3 rotary with 360° LiDAR mapping for batch engraving.
Place It. Position It. Start.
The ACS™ smart workflow takes the guesswork out of every job.
Why Shops Choose the P3
Power, safety and automation in one machine.
Flexible Ways to Invest in Your Growth
xTool P3 vs. P2S vs. F2 Ultra
xTool P2S
xTool P3
xTool F2 Ultra
Specifications
Laser & Performance
- Laser Source
- 80W CO₂ (5W IR module optional)
- Working Area
- 36" x 18" (915 x 458 mm)
- Max Speed
- 1,200 mm/s (47.2 ips)
- X-Axis Acceleration
- 19,600 mm/s²
- Max Cutting, Basswood
- 20 mm, one pass
- Max Cutting, Black Acrylic
- 25 mm, one pass
- Laser Tube Life
- 10,000 hours
- Laser Spot Size
- 0.15 x 0.18 mm (standard lens)
Vision & Software
- Cameras
- 16MP SkyView panoramic + close-range + 2 side cameras
- Positioning Precision
- 0.2 mm (camera)
- Software
- xTool Studio (Windows & macOS)
- Connection
- USB / Wi-Fi
- Supported Files
- SVG, DXF, JPG, JPEG, PNG, BMP, TIF
- Focal Lens
- M (2.0") included; S and L sold separately
Physical
- Dimensions
- 49.2" x 30.7" x 19.5" (1250 x 780 x 496 mm)
- Weight
- 231.5 lb (105 kg)
- Max Processing Height
- 220 mm with riser base
- Rotary Diameter
- 0-200 mm
- Max Input Power
- 1400 W
- Power Input
- 100-240 V AC, 50 Hz
Safety & Cooling
- Laser Safety Class
- Class 1
- Cooling
- Built-in inverter water chiller
- Fire Suppression
- Built-in CO₂ active suppression
- Pre-assembled
- Yes
Frequently Asked Questions
The P3 steps up to 80W of CO₂ power (vs. 55W), a 36" x 18" working area (vs. 23.6" x 12"), 1,200 mm/s speed (vs. 600 mm/s), Class 1 laser safety and a built-in water chiller.
CO₂ delivers clean cuts in wood and acrylic, can engrave clear acrylic and glass, and handles thick materials like 20 mm basswood and 25 mm black acrylic. Adding the 5W IR module expands compatibility to 300+ materials.
Dual cameras capture a live image of the bed, LiDAR measures the surface distance and the AutoLift base raises or lowers the material to the right focal point, so you place, position and start.
The M focal lens ships with the P3. The conveyor feeder, MagSwap™ RA3 rotary, 5W IR module and the S and L lenses are sold separately unless they come in a bundle. The AP2 Max air purifier is recommended for fumes and odors.
The P3 is a Class 1 laser system with flame and temperature sensing, side cameras and built-in CO₂ active fire suppression. Always ventilate or use an air purifier, and never leave a running job unattended.
xTool Studio for Windows and macOS, including Smart Nesting, Variable Batch Fill and EasySet™ 2.0 material presets.
Choose Standalone to start, the Versatile Bundle for more accessories, or the All-in-one Bundle for a full production setup. Contact us and we will help you pick the right one.
