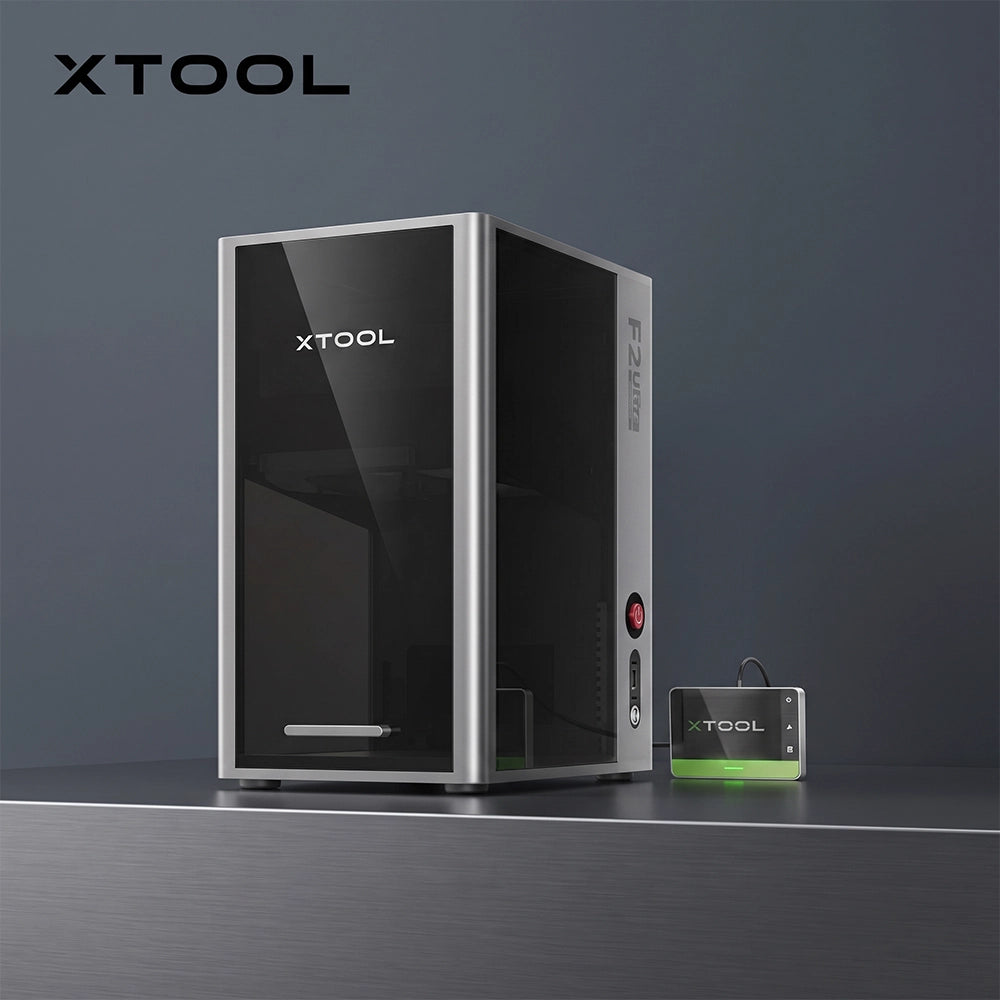

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver
Maximum Versatility. Professional Laser Engraving & Cutting.
The xTool F2 Ultra combines a powerful 60W MOPA infrared laser with a 40W blue diode laser, giving businesses and professional creators the flexibility to engrave metals, cut wood and other non-metal materials, and produce highly detailed personalized products with one versatile machine.

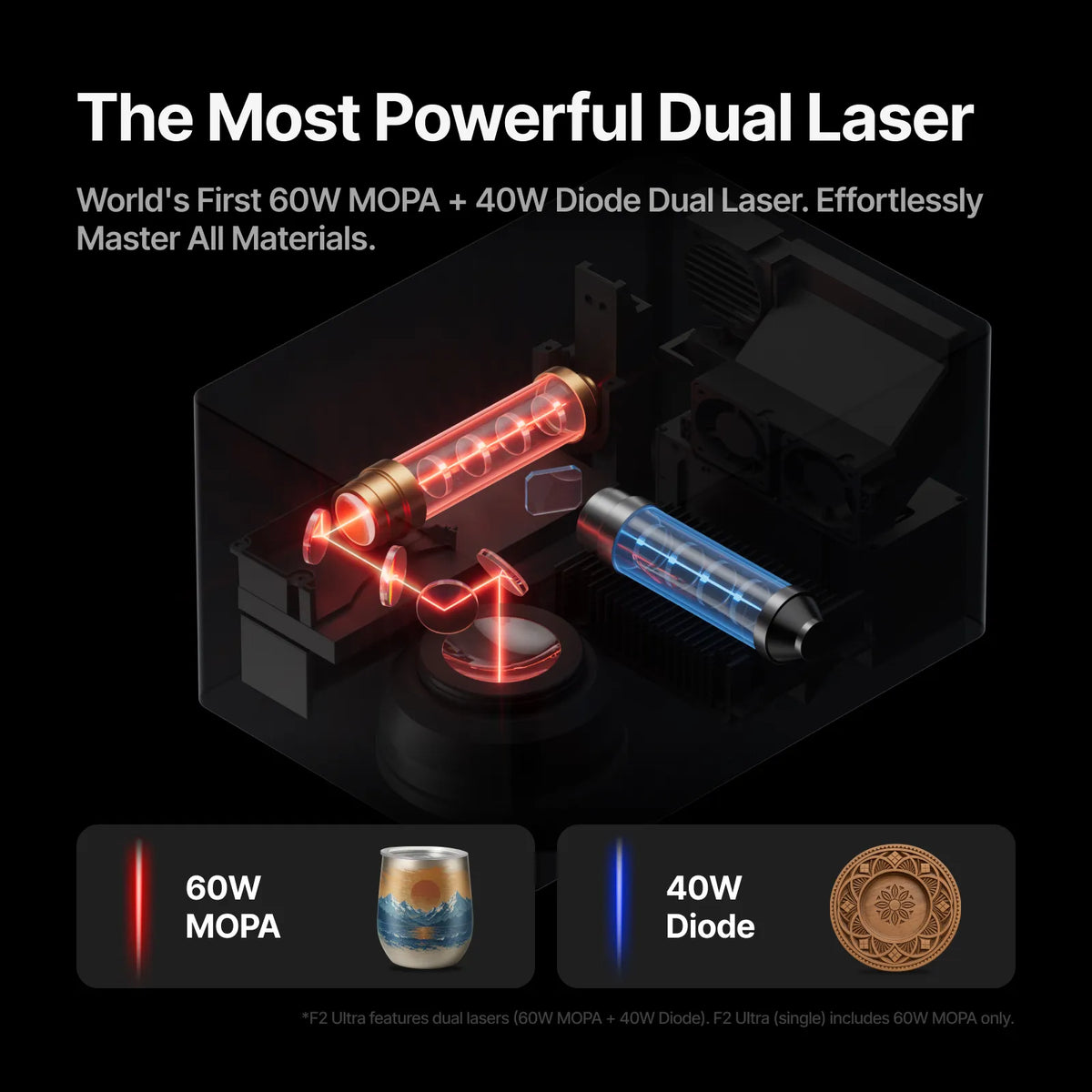

Dual-Laser Technology
Two laser technologies provide expanded material compatibility:
- 60W MOPA Infrared Laser — ideal for engraving stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold and other metals.
- 40W Blue Diode Laser — designed for cutting and engraving materials such as wood, paper, leather, MDF, felt and some dark opaque acrylics.
This combination makes the F2 Ultra particularly suitable for businesses that need to work with both metals and non-metal materials.
High-Speed Professional Production
With a maximum processing speed of up to 15,000 mm/s, the F2 Ultra is built for efficient production and high-volume personalization. Its standard working area is 8.6" × 8.6" (220 × 220 mm) and can expand to 8.6" × 19.6" (220 × 500 mm) with the compatible conveyor system.

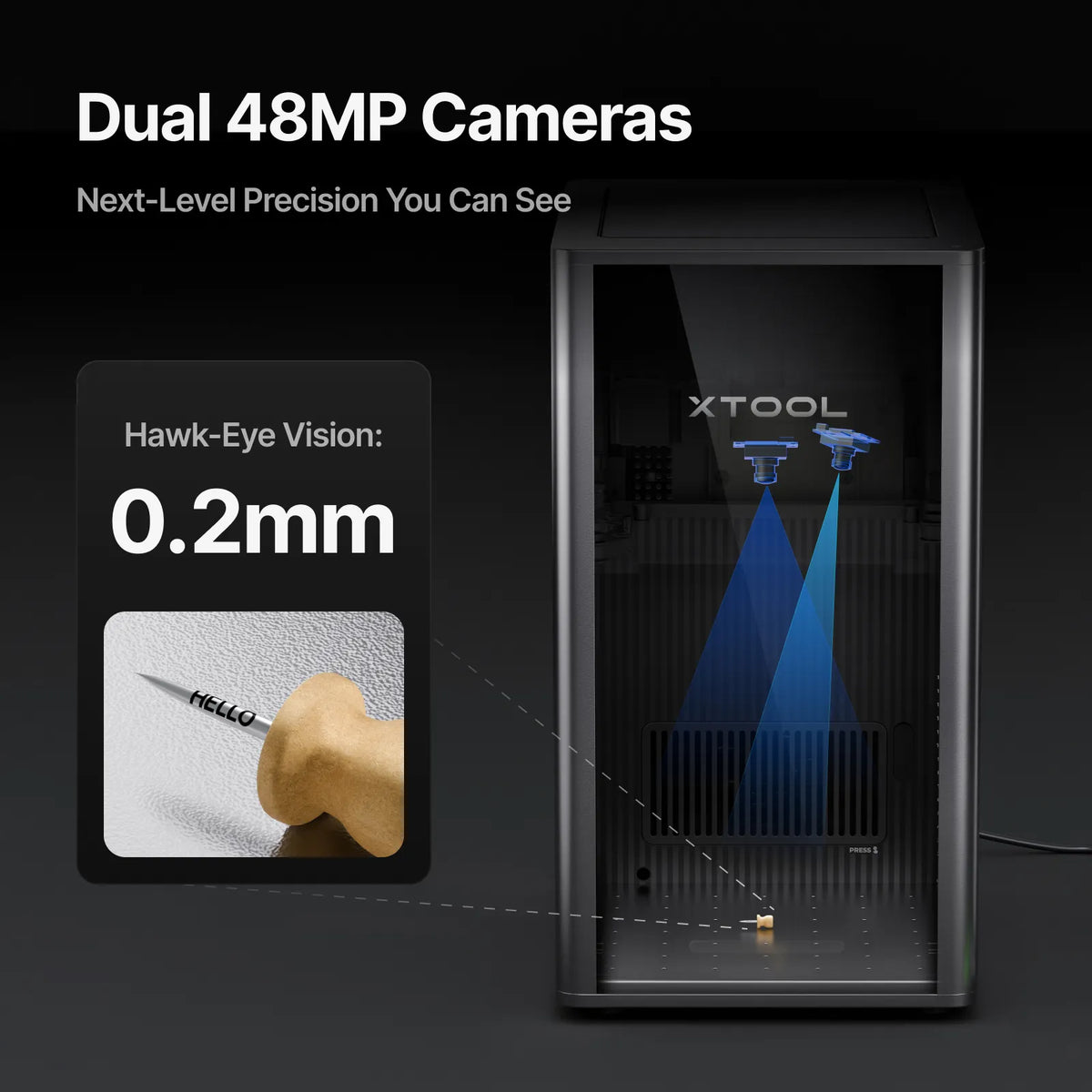

Precision Camera Positioning
The integrated 48MP dual-camera system provides smart visual positioning and helps accurately place artwork on the material. With camera positioning and autofocus, the F2 Ultra simplifies alignment and improves production consistency. xTool specifies positioning precision of approximately 0.2 mm.
Deep Engraving & Powerful Cutting
The F2 Ultra is capable of deep engraving on metals and high-performance cutting on compatible materials. xTool lists maximum cutting capabilities of up to:
- 23 mm basswood in multiple passes
- 20 mm acrylic in multiple passes
Actual results vary depending on material type, density, settings and number of passes.
Rotary Engraving
With compatible rotary accessories, the F2 Ultra can engrave cylindrical products with diameters of up to 150 mm, opening up additional opportunities for personalized drinkware, bottles, cylinders and other products.
Perfect for Professional Personalization
Create:
- Metal business cards
- Tumblers and bottles
- Jewelry
- Keychains

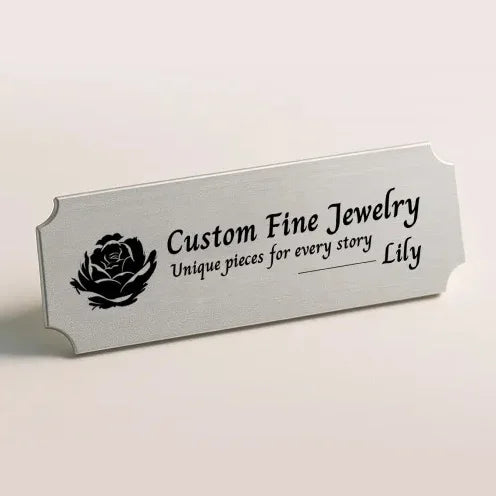

- Awards and plaques
- Personalized gifts
- Wood signs
- Leather products
- Promotional merchandise

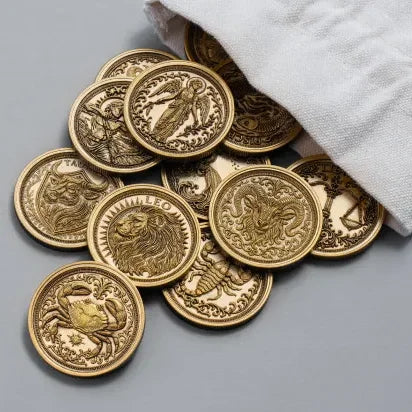

- Custom metal products
- Small-batch production runs
xTool Studio
The F2 Ultra works with xTool Studio on Windows and macOS and supports common file formats including SVG, DXF, JPG, JPEG, PNG, BMP and TIF. The machine supports USB, Wi-Fi and IP connectivity.
Built for Professional Workflows
The F2 Ultra comes pre-assembled and includes autofocus, camera positioning and smart camera preview to simplify setup and production. Its motion accuracy is specified at 0.00482 mm.
Technical Specifications
| Specification | Details |
|---|---|
| Laser Type | 60W MOPA Infrared + 40W Blue Diode |
| Working Area | 8.6" × 8.6" (220 × 220 mm) |
| Expanded Area | 8.6" × 19.6" (220 × 500 mm) with conveyor |
| Maximum Speed | 15,000 mm/s |
| Max. Processing Height | 150 mm |
| Max. Rotary Diameter | 150 mm |
| Built-in Cameras | 48MP Dual Cameras |
| Positioning Precision | 0.2 mm |
| Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection | USB / Wi-Fi / IP |
| Safety Certification | Class 4 Laser Safety |
| Machine Size | 11.57" × 16.88" × 20.51" |
| Weight | 47 lb (21.6 kg) |
| Voltage | 110V / 220V |
Los datos anteriores corresponden al modelo F2 Ultra dual-laser. Es importante no mezclarlos con las especificaciones de F2 Ultra Single, que utiliza únicamente el láser MOPA de 60W.
Important Safety Information
The xTool F2 Ultra is a Class 4 laser system. Laser equipment of this class requires appropriate safety procedures, installation and protective measures. Always follow the manufacturer's safety instructions and operate the machine according to applicable regulations.
